Security camera footage is often missing at exactly the moment it is needed: the recording has been
deleted, the device has been formatted, the disk is no longer recognised, or the recording loop has
come back round and started writing over the older footage. Because these recordings are not stored
as ordinary files on an ordinary disk, standard data recovery software cannot see them at all.
We recover footage from DVRs, NVRs and camera memory cards by decoding the manufacturer's own
recording format and reconstructing the video stream. Preliminary analysis is free: we tell you
which date range comes back before any recovery work begins.
Why DVR recovery is not ordinary disk recovery
Recorders do not use the file systems computers use. That is where the difference begins.
Proprietary file system
Every manufacturer uses its own recording format; there is no NTFS or FAT partition. This
is why Windows shows the disk as unformatted and ordinary recovery software reads it as empty.
A continuous stream
Footage is not separate files but an uninterrupted stream of fixed-size blocks. Recovery
is not a matter of finding files; it means decoding the stream and rebuilding the timeline.
Looping recording
When the disk fills, the recorder does not stop — it loops back and writes over the oldest
footage. The most common cause of loss is not a fault but this loop.
Harsh conditions
A recorder's disk writes continuously for years, usually in an unventilated cabinet.
Surface degradation and head wear are common as a result.
How long does your footage stay on the disk?
"Can we still get last month's footage?" usually has a mathematical answer. The table below shows
how many days a continuously recording device runs before it loops and begins overwriting.
Disk capacity
8 channels / 2 Mbps
8 channels / 4 Mbps
16 channels / 4 Mbps
1 TB
~6 days
~3 days
~1.5 days
2 TB
~12 days
~6 days
~3 days
4 TB
~23 days
~11.5 days
~6 days
8 TB
~46 days
~23 days
~11.5 days
The table assumes continuous recording and H.264 compression. Motion-triggered recording can
multiply these figures; a busy scene shortens them. For a rough calculation on your own device:
one channel at 1 Mbps uses about 10.5 GB per day.
What this means in practice: switch the device off the moment you realise you
need footage of an incident. In most cases what makes recovery hard is not a faulty disk but
the time that passes between noticing the incident and switching the recorder off.
What people come to us with
These are the situations we see most often in the DVR and CCTV cases in our laboratory archive.
Footage deleted
The most common case. The device marks the area as free, but the data is still on the
disk and can largely be brought back as long as nothing new has been recorded over it.
Critical: switch the device off and make no new recordings.
Device formatted
Formatting usually only resets the recording table; the footage blocks stay where they
are and can be extracted by decoding the stream.
Overwritten
The recorder kept running until the incident was noticed and the loop came back round.
The parts not yet overwritten are recovered; the earlier it is stopped, the more comes back.
Recorder cannot see the disk
The DVR powers on but the disk is not listed, or the device keeps restarting. Usually the
problem is the disk itself: surface degradation, a head fault or a failed circuit board.
A backup that will not play
The backup copied to a USB drive turned out corrupt and the files will not open. The
backup can often be repaired, or the footage extracted again from the source disk.
The camera's memory card
The recording may be on an SD card inside the camera rather than a central recorder.
Card recovery requires a different approach to a DVR disk.
What arrives at the laboratory
Most of the DVR and CCTV cases in our archive are 3.5-inch hard disks taken out
of recorders. Second most common are memory cards from inside cameras, usually
from standalone units. Less often we examine SSDs and USB drives used as recording media.
On disks taken from recorders the brands we see most often are Seagate and
Western Digital; disks carrying the camera manufacturer's own label also arrive.
The most common capacity is 4 TB, followed by the 1–3 TB range.
We work independently of the recorder brand: disks from Hikvision, Dahua, Samsung, Axis, Bosch,
Avtech, Vivotek and locally manufactured devices are all examined. Because recovery is done from
the disk itself rather than the recorder, your recorder does not need to be in
working order.
Cases come mainly from Istanbul, but we accept shipments from across Türkiye, including Ankara,
Kocaeli, Balıkesir, Bolu, Zonguldak, Çanakkale and Erzurum.

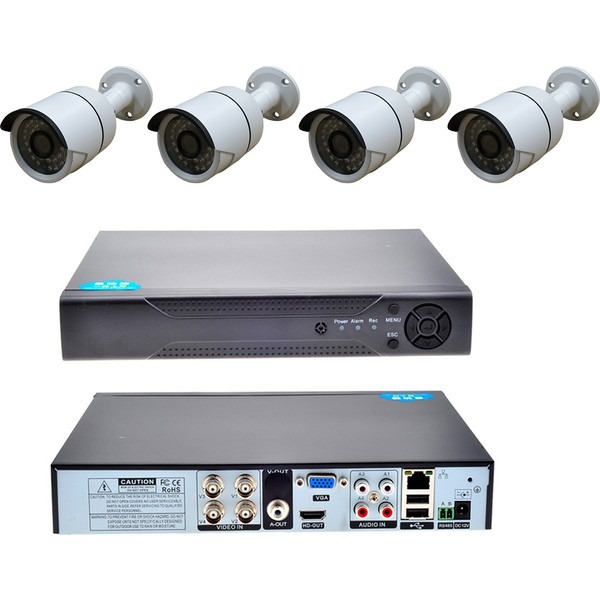

A DVR recorder and the disk inside it. Recovery is performed from the disk, not from the recorder.
What happens in the laboratory
1
Bit-for-bit copy
Nothing is done to the disk directly. A sector-by-sector copy is taken through a
write-blocked interface. If the surface is degraded, the copy is managed so that the
difficult areas are left until last. All further work runs on that copy.
2
Decoding the recording format
The manufacturer signature and block structure at the start of the disk are examined to
establish which recording format is in use. Channel count, block size and the position
of the timestamp within the stream are determined.
3
Extracting the stream
Where the recording table has been deleted or corrupted, the video stream is scanned
directly at block level, extracted and reordered by timestamp. Overwritten regions
become clearly visible at this stage.
4
Verification and delivery
The recovered footage is opened and checked for date, time and channel consistency,
then converted to a standard video format. You receive it together with a list of
exactly which date ranges came back.
Important things to know
If the device has completed its loop and fully overwritten the older footage, that footage cannot be reached. Where overwriting is partial, the preliminary analysis establishes how much can be recovered.
If you have deleted footage, deliberately or by accident, do not make new recordings with the device. New recordings write over the deleted footage.
If you have formatted a DVR or NVR, do not make new recordings.
Do not take the disk out of the recorder and connect it to your computer as a second drive. DVR devices use their own recording format; when the disk is connected, the operating system offers to format it, and an accidental confirmation can corrupt the recordings irreversibly.
If the recorder does not recognise the disk, do not swap the circuit board. Even an identical model board can be incompatible.
If the disk is making noise or is not recognised, do not open it. A disk opened outside a clean room can become permanently unrecoverable because of dust settling on the platter surface.
Switch the recorder off, unplug it and do not turn it back on.
Do not send the disk to a computer repair shop, an electronics workshop or the company you bought the device from. Every unsuccessful attempt reduces the chance of a later recovery.
If the footage will be used as evidence
Security camera recordings are often needed for a theft, a workplace accident, a traffic incident
or an insurance claim. In those cases, alongside the recovered footage, how it was
obtained has to be documented.
On request we take a bit-for-bit image of the disk, record hash values for the image and the
extracted files, and report every step taken as an expert opinion signed and stamped by
TeknikNokta. A notary is not involved by default; one can attend during the
work if you ask for it.
It matters that you tell us this when you first get in touch — the work is then
carried out that way from the start. See our
digital forensics page for details.
How to send it, and what we need from you
A few details speed the analysis up considerably. Sending them with your enquiry shortens the
preliminary analysis.
The date and time range you need. We scan the window you actually need first, rather than the whole archive.
The channel number or camera location. Which camera's footage you are looking for.
The make and model of the recorder. This speeds up identifying the recording format.
What happened after the incident. Was the device left running, was it formatted, was the disk taken somewhere else. This has to be what actually happened rather than a guess; knowing what was done changes the method.
How to package the disk. In an antistatic bag with shock-absorbing padding, packed so it cannot move inside the box. Do not stick labels or tape onto the disk itself.
If you are unsure, call us before removing the disk; we will tell you over the phone what to send
for your particular model.
If you need camera footage back
Switch the device off and unplug it first — everything beyond that depends on how much time
passes. Then call us and we will work out together what you need to send. Preliminary analysis
is free, and we tell you which date range comes back before any work begins.
Answers to the questions we are asked most often about DVR and CCTV data recovery.
Can you recover footage from DVR and CCTV recordings?
Yes. We recover footage from DVR, NVR and security camera recordings. Disks taken out of Hikvision, Dahua, Samsung, Axis, Bosch and other recorders, as well as memory cards from inside cameras, are examined in our laboratory. Footage is extracted from formatted, deleted or inaccessible recordings. Preliminary analysis is free; we tell you which date range can be recovered, and the price, before any work begins.
Can overwritten footage be recovered?
Partly. If new recordings have been written over the old footage, the parts that were not overwritten can still be recovered. Sections that were fully overwritten cannot. On recorders that loop, the data from the most recent cycle and any older fragments not yet overwritten can be extracted. Switching the device off immediately, so that no new recording is made, directly increases what comes back.
How many days before my footage is overwritten?
It depends on disk capacity, channel count and recording quality. An 8-channel recorder with a 4 TB disk, recording continuously at 4 Mbps per channel, loops back and starts overwriting after roughly 12 days. Split across 16 channels, that falls to about 6 days. Motion-triggered recording extends it. This is why the device should be switched off the moment you realise you need the footage: every day of delay reduces what can be recovered.
My DVR is faulty. What should I do?
Switch it off, disconnect the power and do not turn it back on. Do not open the recorder or remove the disk yourself; the wrong intervention can cause permanent loss. You can send us the recorder, or, if we advise it, only the disk inside, safely packaged. After the free preliminary analysis we share the recovery options and the cost.
Can I connect the disk to my computer and look myself?
No, this is not advisable. DVR disks do not use a file system that Windows recognises. When you connect one, Windows reports that the disk is not formatted and offers to format it — an accidental confirmation writes over the beginning of the recording area. The operating system may also write its own signature to a disk it does not recognise. The disk should only be examined through a write-blocked interface, working on a sector-by-sector copy.
How is the recovered footage delivered?
Recordings are taken out of the manufacturer's recording format and converted to standard video files, so they can be viewed without a proprietary player. On request they are organised into folders by channel and date. Delivery is on an external disk or USB drive.
Can I use the recovered footage in court or for an insurance claim?
For footage to carry evidential weight, the recovery process has to be documented. On request we take a bit-for-bit image of the disk, record hash values and report every step in an expert opinion signed and stamped by TeknikNokta. It matters that you tell us this at the outset, so the work is carried out that way from the start.
